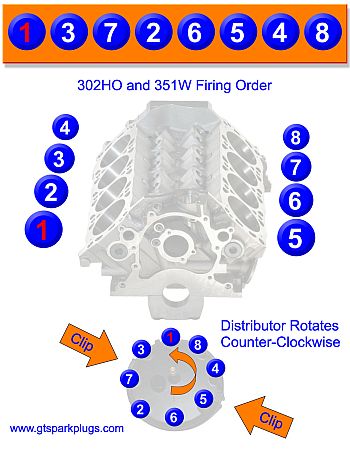

302 HO and 351W Firing Order


Finally here is a nice LARGE EZ to see picture for you to use. Includes distributor rotation and wire locations. This is for any SBF (Small Block Ford) that uses the later model firing order. This may include any SBF engine with an updated camshaft.

Click the Picture to see the full version
Ford 260, 289 and 302 Firing Order

260, 289, 302 Firing Order


Finally here is a nice LARGE EZ to see picture picture for you to use. Includes distributor rotation and wire locations. If you have a Small Block Ford (SBF) with the older firing order use this chart.

Click the Picture to see the full version
Drill and Tap Chart - INCH

Drill and Tap Chart - INCH


A large and EZ to read Drill and Tap Chart. This can be read on a phone, or pad and does not have any extra information. Includes Coarse, Fine and Pipe thread sizes.

Click on the picture to give it a go!
Drill and Tap Chart - METRIC

Drill and Tap Chart - METRIC


A large and EZ to read Drill and Tap Chart. This can be read on a phone, or pad and does not have any extra information. Includes Coarse, Fine and Pipe thread sizes.

Click on the picture to give it a go!
Drill and Tap Chart - British

Drill and Tap Chart - British


A large and EZ to read Drill and Tap Chart. This has some funky British 55o thread angle so use care if you run into older British cars with these bolts as standard and metric threads are very different.

Click on the picture to give it a go!
Sheet Metal Gauge Chart

Sheet Metal Gauge Guide


A large and EZ to read Sheet Metal Gauge Guide. This should not replace a dial caliper but can help if you need a quick look up.

Click on the picture to give it a go!

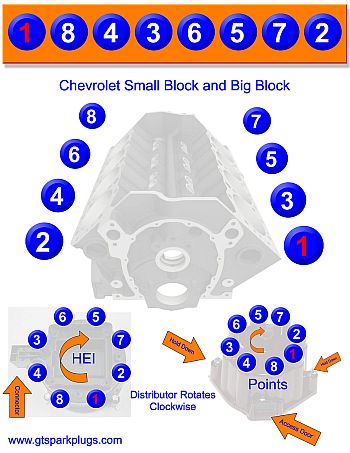

Chevrolet Small Block and Big Block Firing Order

Chevy Big and Small Block Firing Order


Finally here is a nice LARGE EZ to see picture for you to use. Includes distributor rotation and wire locations. This firing order is for the 283, 327, 350, 400 Small blocks as well as 366, 396, 427 and 454 Big Block Chevy's

Click the Picture to see the full version
Ford FE 390, 427 and 428 Firing Order

Ford FE Firing Order


Yet another EZ to read LARGE firing order diagram for the FORD FE. That's right the Big Block Ford series including 352, 360, 390, 406, 427 and 428 series of engines. This, of course, includes plug wiring and distributor rotation. Big Block Ford Fans can relax now, here is your chart.

Click the Picture to the right to see the full version

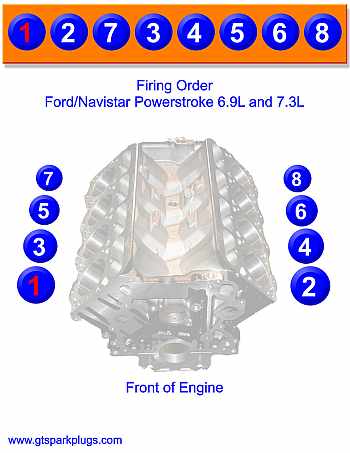

Ford Powerstroke 7.3L and DT444 Firing Order

Power Stroke 7.3L Firing Order


Finally here is a nice LARGE EZ to see picture for you to use. This chart is for the Power Stroke series of 6.9L and 7.3L engines found in Ford Trucks and Navistar and International Trucks (Other things too I'm sure!)

Click the Picture to see the full version

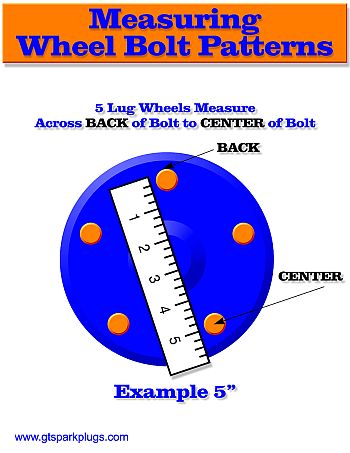

How to Measure Bolt Pattern on Wheels 5 Lug
How to Measure Bolt Pattern on Wheels 5 Lug

Another LARGE EZ to see picture for you to use. This guide shows how to find out what your 5 lug wheel pattern is. Simple.

Click the Picture to see the full version

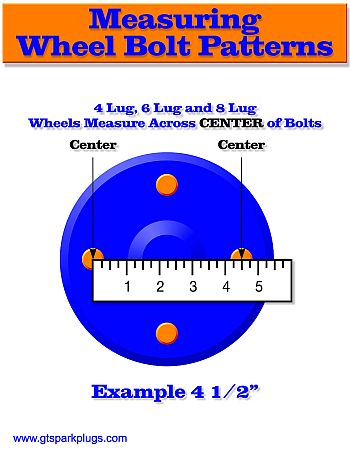

How to Measure Bolt Pattern on Wheels 4, 6, 8 Lug

How to Measure Bolt Pattern on Wheels 4, 6, 8 Lug


Another LARGE EZ to see picture for you to use. This guide shows how to find out what your lug wheel pattern is if you have a wheel with 4, 6, or 8 lugs.

Click the Picture to see the full version
GTSparkplugs Header
Click for Contact Page Click for Contact Page
Reading Spark Plug Conditons

Reading Spark Plug Color


This is a redo of the Autolite page. I have added commentary and such. Basically a EZ-Read version of the old Autolite Spark Plug Chart.

Click on the picture to give it a go!
Valve Adjusting Sequence 302 HO and 351W

Valve Adjustment Sequence Ford 302 HO and 351W

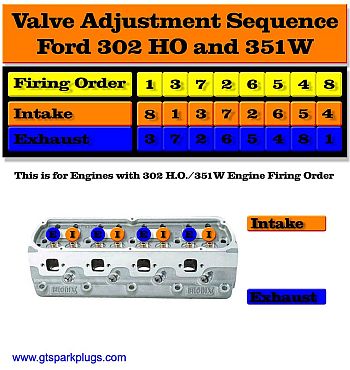

Another LARGE EZ to see picture for you to use. This guide the order on adjusting your valves if you use the later model firing order found on 302HO and 351W Ford Engines.

Click the Picture to see the full version
Valve Adjusting Sequence 260, 289 and 302

Valve Adjustment Sequence Ford 260, 289 and 302

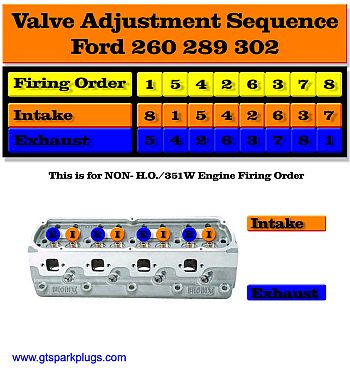

Another LARGE EZ to see picture for you to use. This guide the order on adjusting your valves if you use the earlier model firing order found on the 260, 289 and 302 Ford Engines.

Click the Picture to see the full version

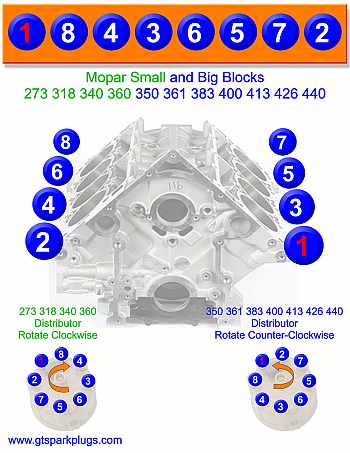

Dodge Plymouth MOPAR Firing Order

MOPAR V8 Firing Order


Do you have a Dodge or Plymouth? This will help determine the firing order of your MOPAR product. This is for V8 engines of the size small block 273, 318, 340, 360 and big block 350, 361, 383, 400, 413, 426 and the 440

Click the Picture to see the full version
Flathead Ford Firing Order

Flathead Ford V8 Firing Order

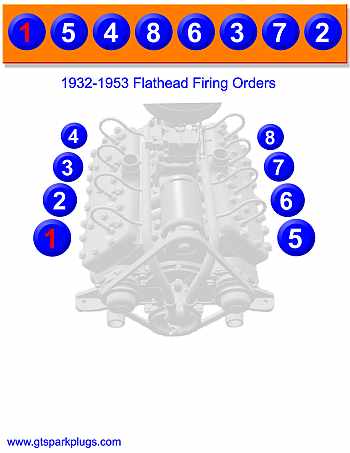

After putting up the MOPAR firing order I became obligated to do the Flathead Fords. Here is the collection of ALL years of the flathead Ford and their firing order as well as distributor configuration.

Click the Picture to see the full version for EACH year

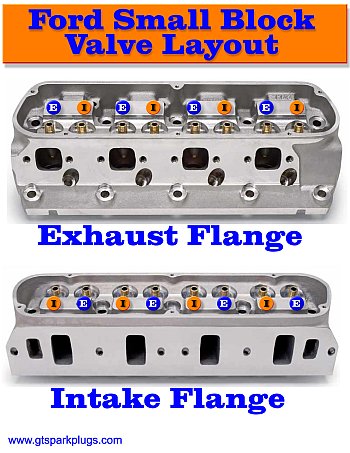

Ford Small Block Valve Locations

Small Block Ford Valve Layout


EZ Read pictorial of Valve locations for the Small Block Ford engine.

Click the Picture to see the full sized version
Chevrolet Big Block Valve Layout

Big Block Chevy Valve Layout


EZ Read pictorial of Valve locations for the Big Block Chevy engine.

Click the Picture to see the full sized version

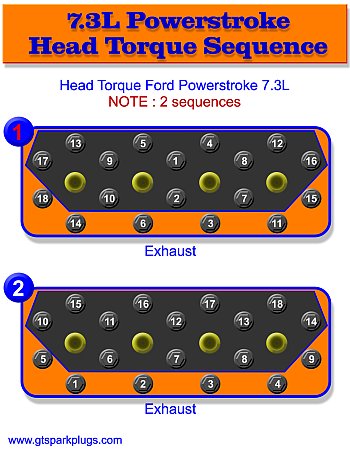

Powerstroke Head Bolt Torque Sequence

Ford Power Stroke Head Bolt Torque Sequence


Here is an EZ Read head bolt torque sequence for the great Ford Power Stroke 7.3L Diesel. Included are Head Bolt Torque and Head Stud Torque.

Click the Picture to see the full sized version

Big Block Chevy Head Bolt Torque Sequence

Big Block Chevy Head Bolt Torque Sequence



Here is an EZ Read head bolt torque sequence for the Big Block Chevrolet. Included are Head Bolt Torque.

Click the Picture to see the full sized version

Big Block Chevy Intake Bolt Torque Sequence

Big Block Chevy Intake Bolt Torque Sequence

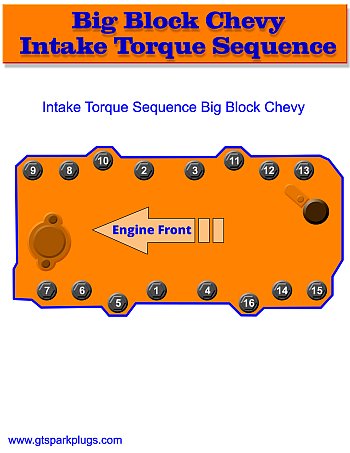

Changing the Intake manifold on your Big Block Chevy? This will help. It includes torque settings and the torque sequence pattern to correctly install your intake.

Click the Picture to see the full sized version

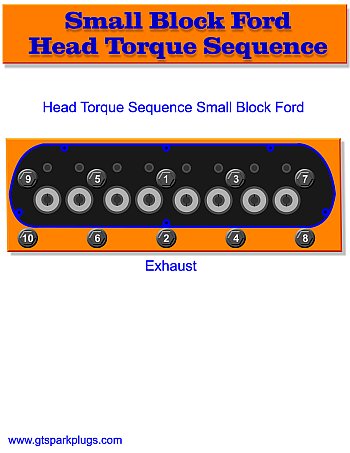

Small Block Ford Head Bolt Torque Sequence

Small Block Ford Head Bolt Torque Sequence



Here is an EZ Read head bolt torque sequence for the Small Block Ford. Included are Head Bolt Torque. This is for 260, 289, 302, Boss 302 and 351W engines.

Click the Picture to see the full sized version

Small Block Ford Intake Bolt Torque Sequence

Small Block Ford Intake Bolt Torque Sequence



Ford Small Block EZ Read head bolt torque sequence. This is for the intake manifold on your SBF. Included are Bolt Torque and other useful information. This is for 260, 289, 302, 302HO,  Boss 302 and 351W engines.

Click the Picture to see the full sized version

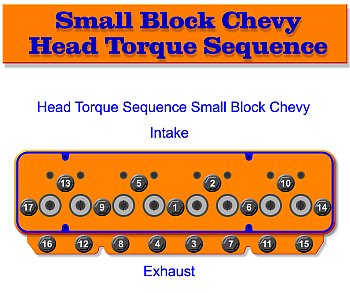

Small Block Chevy Head Bolt Torque Sequence

Small Block Chevy Head Bolt Torque Sequence



EZ Read head bolt torque sequence for the Small Block Chevy. Included are Head Bolt Torque values. This is for 283, 302, 307, 350 and 400 engines.

Click the Picture to see the full sized version

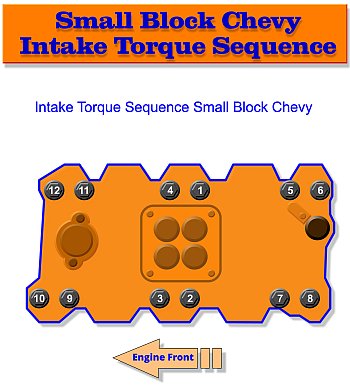

Small Block Chevy Intake Bolt Torque Sequence

Small Block Chevy Intake Bolt Torque Sequence



Another EZ Read Intake manifold bolt torque sequence for the Small Block Chevy (SBC) . Included are Bolt Torque and tips. This is for 283, 302, 307, 350 and 400 engines.

Click the Picture to see the full sized version

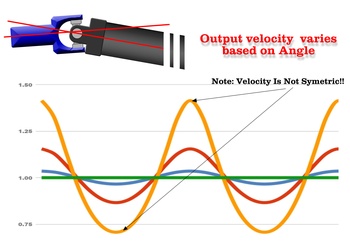

suspension camber angle examples

Simple Camber Angle Example

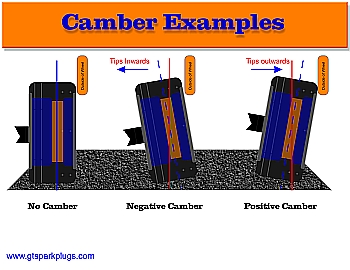

Here is a simple discussion on camber angles and what they mean. Should you run Negative camber? Positive, or No camber...

Click the Picture to see the full version and find out!

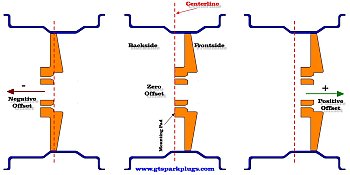

Wheel and Rim Offset Examples

Wheel Offset Examples


What is Negative, Positive or Zero Offset? Here is a quick example that shows each of them.

Click the Picture to see the full version and find out!
Ford 351C, 351M and 400M Firing Order

351C, 351M and 400M Firing Order


Finally here is a nice LARGE EZ to see picture picture for you to use. Includes distributor rotation and wire locations. If you have a Ford Cleveland style engine this is what you need.

Click the Picture to see the full version

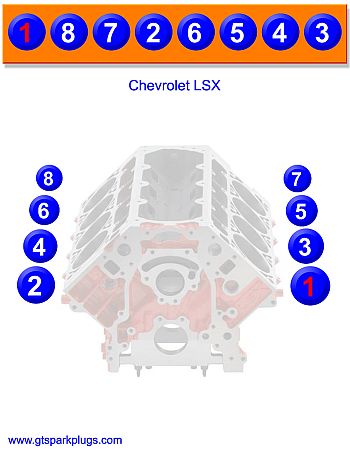

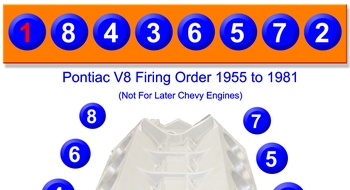

Chevrolet LSX Firing Order

Chevrolet LS-X Series


Need to figure out the firing order for the LS Series of Chevrolet engine? Here it is in the LARGE EZ Read format.

Click the Picture to see the full version

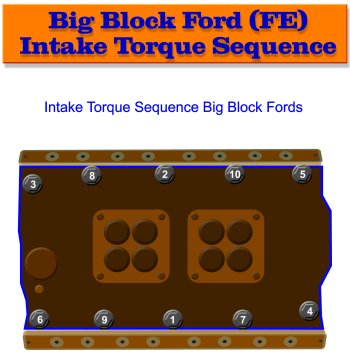

Big Block Ford Intake Bolt Torque Sequence

Big Block Ford (FE) Intake Bolt Torque Sequence



EZ to Read Intake manifold bolt torque sequence for the the big block Ford. This includes 390, 427 and 428 engines.

Click the Picture to see the full sized version

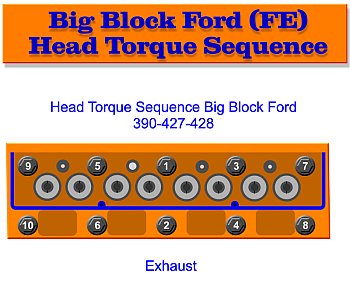

Ford FE Head Bolt Torque Sequence

Big Block Ford (FE) Head Bolt Torque Sequence



EZ to Read cylinder head bolt torque sequence for the the big block Ford. This includes 390, 427 and 428 engines. Rocker shaft torque specs also given.

Click the Picture to see the full sized version

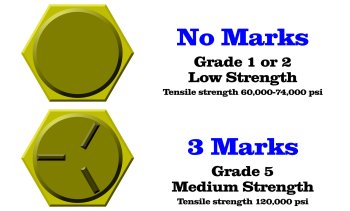

SAE Bolt Grades

Bolt Grade Marking Guide


A large and EZ to read page with bolt markings to help ID the bolts. This includes regular steel and stainless steel hex head bolts.

Click on the picture to give it a go!
Bolt Torque

Hex Bolt Torque Chart


A large and EZ to read page with bolt torque for common SAE Grade bolts. Includes Fine and Coarse thread bolts and specs for dry and lubricated.

Click on the picture to give it a go!
socket head cap screw torque - INCH

Socket Head Torque Chart


A large and EZ to read page with socket head (cap screw)  torque for ASTM A574 Grade bolts. Includes Fine and Coarse thread bolts and specs for dry and lubricated.

Click on the picture to give it a go!

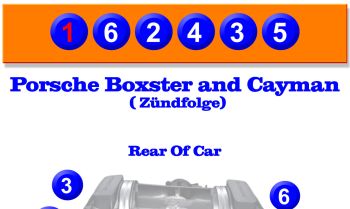

Porsche Boxster Firing Order

Porsche Boxster and Cayman Firing Order


Had to work on the Boxster. Here is a helpful EZ Read firing order for those cars.

Click the Picture to see the full

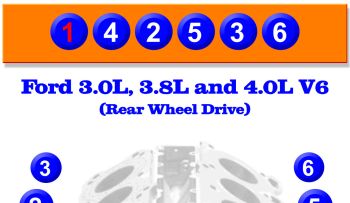

Ford V6 Firing Order - RWD

Ford V6 Firing Order


EZ Read firing order chart for the Ford V6 Series of engine. This is mainly for the Rear Wheel Drive vehicles as toehr engines may have a different order.

Click the Picture to see the full version for EACH year

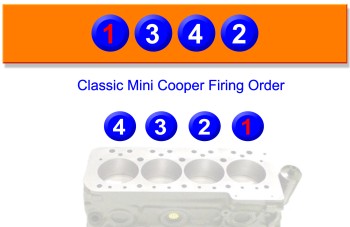

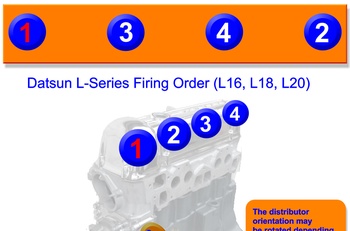

EZ Read Mini Cooper Firing Order

Classic Mini Cooper Firing Order


Nothing I'm working on yet, but figured I would add one for those that need the big EZ Read firing order for the Mini. This is NOT for the BMW version of the Mini.

Click on the picture to give it a go!
Porsche 911 Firing Order

Porsche 911 Firing Order


These are for something for Porsche air cooled folks. More EZ Read Firing order, 911 Air Cooled Specific.

Click the Picture to see the full version
BMW Inline 6 Firing Order

BMW Inline 6 Firing Order


EZ Read firing order for BMW's Great Inline 6 engines.

Click the Picture to see the full version
Metric Bolt Torque Chart

Metric Bolt Torque Chart


An EZ Read chart that has several grades of metric bolts. Almost all new cars are using metric bolts these days so here is a helper for your tired eyes.

Click on the picture to give it a go!

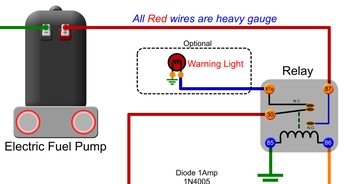

Introduction to Automotive Relays

Introduction to Automotive Relays


A quick introduction to Automotive relays and how to use them. It's easy!

Click on the picture to give it a go!
Horn Wiring

Horn Wiring Examples


A quick introduction to horns and how to wire your car horns up.

Click on the picture to give it a go!

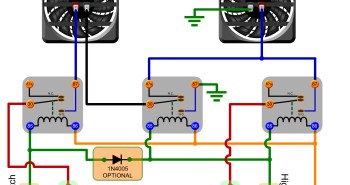

Automorive Fan Wiring

Cooling Fan Wiring Examples


A quick introduction to horns and how to wire automotive electric fans.

Click on the picture to give it a go!
Automotive Flashers

Automotive Flashers

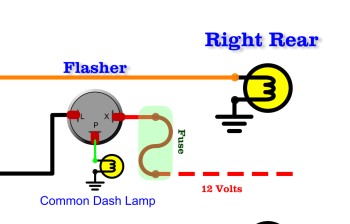

A quick introduction to old school automotive flashers used for turn signals and emergency lights. Sample wiring diagrams included to help get you going.

Click on the picture to give it a go!
Ford FE 390, 427 and 428 Firing Order

Ford 429 and 460 Firing Order


EZ to read LARGE firing order diagram for the FORD 429 and 460 engines that I forgot to do.  Includes plug wiring and distributor rotation.

Click the Picture to the right to see the full version
Steering Wheel Adapter Guide

Steering Wheel Adapter Guide


Trying to figure out what type or size steering wheel adapter you need? Here is a guide that list the most common types of mounting patterns. Included are the popular Momo, Nardi and Grant patterns. Blown up in the usual EZ Read format

Click on the picture to give it a go!

Ford Small Block Valve Layout


Typical layout of the SBF cylinder heat.

Click the Picture to see the full version for EACH year
Chevrolet LSX Intake Torque Sequence

Chevrolet LSX Torque Sequence

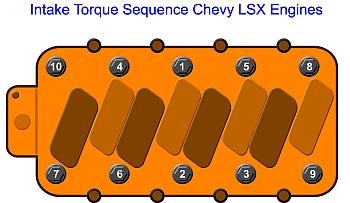

An EZ Read torque sequence for the Chevy LSX series of engines

Click on the picture to give it a go!
